User Management

Overview

User management in ARROW is straightforward. Roles are broken into three categories:

• Admin: We recommend assigning this role only to practice leadership (e.g., Practice Director(s), Practice Manager(s), etc.).
• Manager: This role is ideal for Project Management staff or anyone responsible for adding clients or requesting devices. We do not recommend assigning individual contributors as managers to reduce the possibility of duplicate device requests.
• User: This role is suited for team members who will utilize ARROW in a technical delivery capacity. They will maintain administrative rights over physical devices and virtual deployments but will not have access to billing information, invoices, device requests, etc.

Permission Hierarchy Summary

The table below provides a brief overview of ARROW’s role-based access control (RBAC) structure.

Capability	Admin	Manager	User
User Management	✅ Full	❌ None	❌ None
Role Management	✅ Full	❌ None	❌ None
Client Creation	✅ Yes	✅ Yes	❌ Read-only
Client Management	✅ Yes	✅ Yes	❌ Read-only
Device Request Creation	✅ Yes	✅ Yes	❌ Read-only
Device Access	✅ All	✅ All	✅ All

Adding Users to ARROW

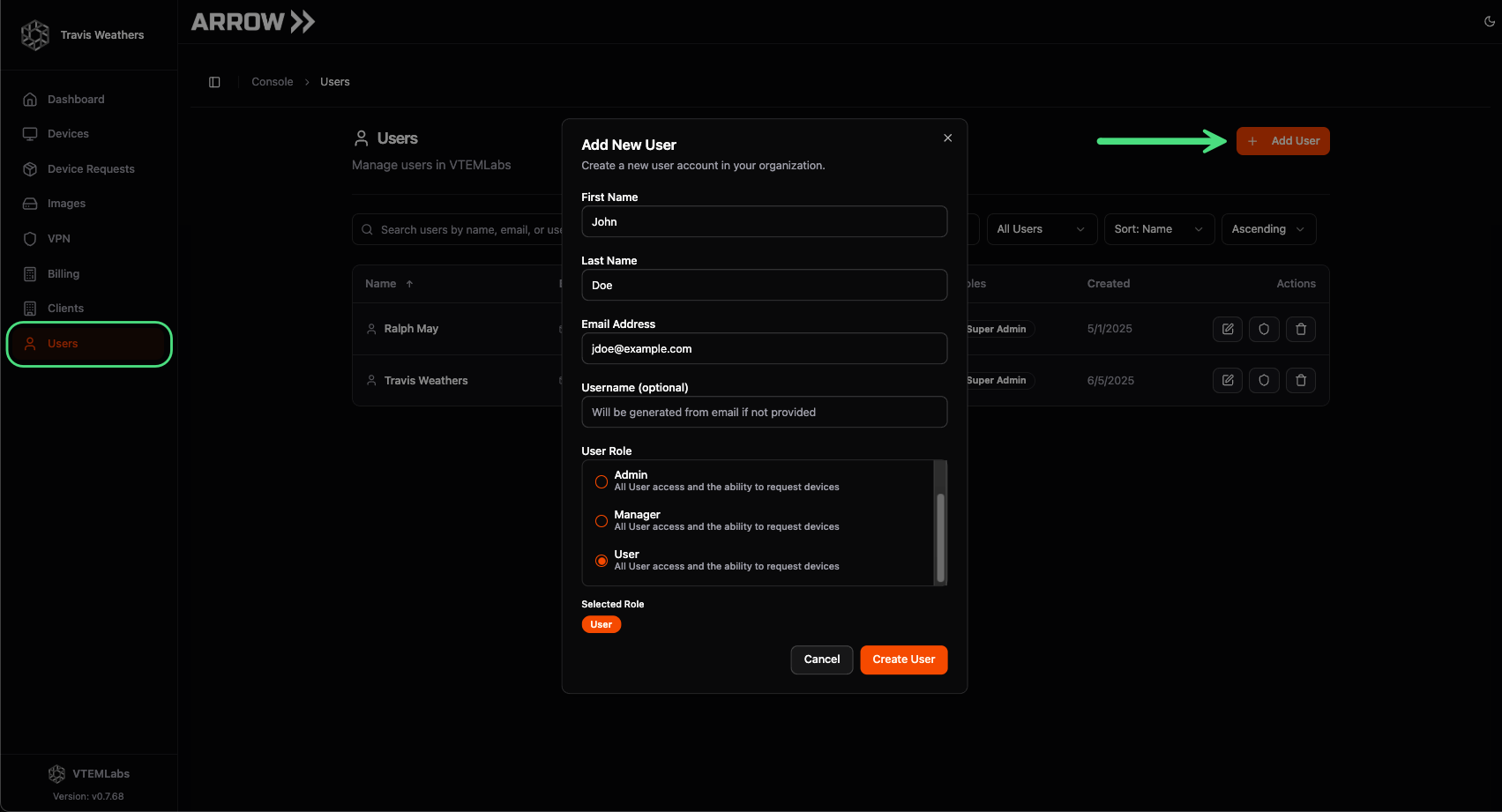

To add users in ARROW, click Users in the sidebar, then click the + Add User button.

Adding a user to ARROW

Removing Users from ARROW

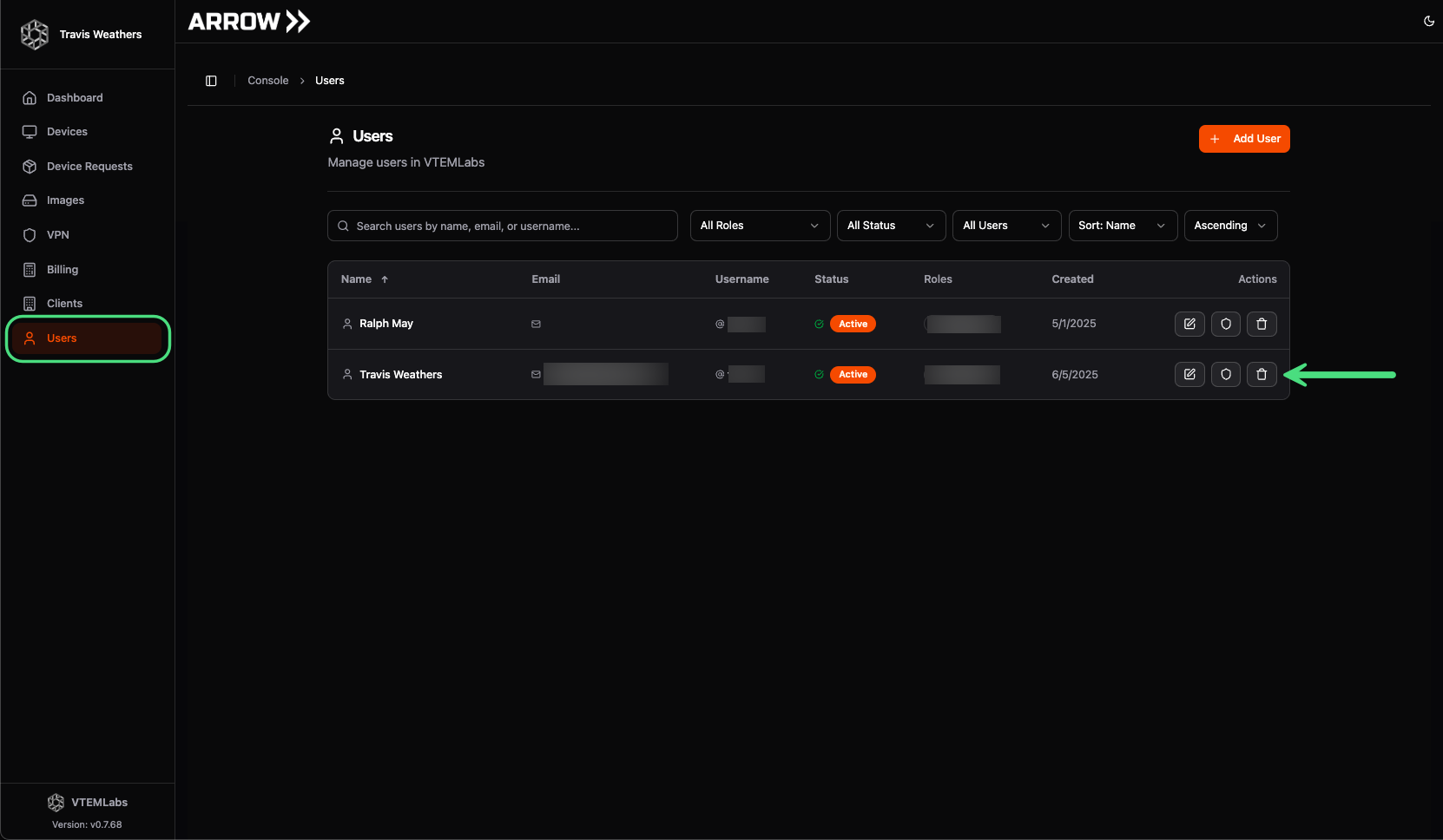

You can immediately kill access to any user in ARROW and your VPN by terminating their account within your IDP (e.g., Google, o365, Okta, etc.). However, you will still need to delete their account from the ARROW portal. To do this, click Users in the sidebar, then click the Trash Can button in the table next to the desired user.

Removing a user from ARROW

---

Technical Implementation

This section provides technical details about ARROW’s permission system architecture for developers and system administrators.

Permission System Architecture

ARROW implements a sophisticated multi-layered RBAC system using PocketBase collections and hooks. The architecture consists of the following components:

Core Collections

Collection	Purpose
users	User accounts with aggregated permissions field
roles	Role definitions with organization_use flag
user_roles	Junction table linking users to roles
permissions	Granular capability definitions

Three-Tier Role System

The role system provides hierarchical access control:

Role	Scope	Primary Capabilities
Admin	Full organization control	User management, role assignment, billing access, all operations
Manager	Operational control	Client creation, device requests, client management
User	Technical delivery	Device access, VPN connectivity, read-only to administrative functions

RBAC System Architecture

graph TD
    A[User] -->|has many| B[User Roles]
    B -->|references| C[Role]
    C -->|has many| D[Role Permissions]
    D -->|references| E[Permission]
    A -->|aggregated| F[User Permissions Array]
    C -->|organization_use flag| G{Assignable by Org?}
    G -->|Yes| H[Org Admins Can Assign]
    G -->|No| I[System Only]

    J[Hooks] -->|Sync on Role Change| F
    J -->|Validate on Assignment| G
    J -->|Sync to Zitadel| K[Zitadel Projects]
    J -->|Sync to NetBird| L[VPN Access Groups]

Permission Synchronization

Permissions are automatically synchronized from roles to users through PocketBase hooks implemented in backend/hooks/user_permissions.go.

SyncUserPermissions Function

The SyncUserPermissions function (lines 230-349) aggregates permissions from all assigned roles:

1. Queries user_roles - Retrieves all role assignments for the user
2. Expands role permissions - Loads the permissions array from each role
3. Deduplicates - Combines unique permissions from all roles
4. Updates user record - Stores the aggregated permissions on the user

Sync Triggers

Permission synchronization is automatically triggered on:

Event	Trigger Location
User role assignment	user_roles create hook
User role removal	user_roles delete hook
Role update	roles update hook (syncs all affected users)
Role deletion	roles delete hook (syncs all affected users)

Delayed Sync After User Creation

When a new user is created, permission sync is delayed by 500ms to allow Zitadel integration to complete first:

go func() {
    time.Sleep(500 * time.Millisecond)
    SyncUserPermissions(app, userId)
}()

Manual Sync Endpoint

For debugging purposes, administrators can manually trigger permission sync:

POST /api/admin/sync-user-permissions

Role Validation

Role assignment validation is enforced in backend/hooks/user_roles_validation.go to ensure organization admins can only assign appropriate roles.

organization_use Flag

Each role has an organization_use boolean field:

Flag Value	Meaning
true	Role can be assigned by organization admins
false	System-only role (site admin assignment only)

Validation Rules

When a user role assignment is created or updated:

1. Check assigner permissions - Verify the requesting user has permission to assign roles
2. Validate organization_use - If assigner is not a site admin, verify the role has organization_use: true
3. Reject invalid assignments - Return error for unauthorized role assignments

Error Handling

Attempting to assign a system-only role without site admin privileges returns:

{
  "error": "This role cannot be assigned by organization administrators"
}

VPN Access Control Integration

User permissions integrate with NetBird VPN access control to manage device connectivity.

Consultant Assignment

The consultants field on device requests controls VPN user access:

Field	Type	Description
consultants	Array	Users authorized to access the device via VPN

Automatic VPN Group Synchronization

When consultants are assigned to devices, the system automatically synchronizes VPN access through hooks in backend/hooks/device_user_access.go:

1. Detects consultant changes - Compares old and new consultant arrays
2. Checks access control status - Verifies if device has access control enabled
3. Updates NetBird groups - Adds/removes users from consultant groups
4. Enforces one-way policies - Ensures consultants can reach devices but not vice versa

Access Control Levels

Level	Setting	Behavior
Organization	user_access_control_default	Default for all devices in org
Device	user_access_control	Per-device override (enabled/disabled/inherit)

See Network Access Control for detailed documentation on VPN access control.

Detailed Permission Hierarchy

ARROW defines granular permissions across multiple categories:

User Management Permissions

Permission	Description
users.organization.create	Create users within the organization
users.organization.delete	Remove users from the organization
users.organization.update	Modify user details and role assignments
users.organization.view	View user list and details

Device Management Permissions

Permission	Description
devices.request.create	Submit new device requests
devices.request.update	Modify existing device requests
devices.manage	Full device management (settings, status, etc.)
devices.view	View device information

Infrastructure Management Permissions

Permission	Description
infrastructure.manage	Manage virtual infrastructure
infrastructure.view	View infrastructure resources

Client Management Permissions

Permission	Description
clients.create	Create new client records
clients.manage	Full client management
clients.view	View client information

Billing Permissions

Permission	Description
billing.view	Access billing information and invoices

Permission Aggregation Rules

Permissions follow additive aggregation:

1. Union of all role permissions - User receives all permissions from all assigned roles
2. No permission subtraction - Higher roles cannot remove permissions granted by other roles
3. Cached on user record - Aggregated permissions stored in users.permissions array for fast access

Implementation Reference

Key Source Files

File	Purpose
backend/hooks/user_permissions.go	Permission sync logic (lines 230-349)
backend/hooks/user_roles_validation.go	Role assignment validation
backend/hooks/device_user_access.go	VPN access synchronization

Related Collections

Collection	Key Fields
users	permissions, organization, is_site_admin
roles	name, permissions, organization_use
user_roles	user, role
permissions	name, description
