Network Access Control

Overview

Arrow implements automated VPN user access control to restrict device access to specific consultants. This ensures that only authorized personnel can connect to sensitive ARROW devices through the VPN, enhancing security and compliance.

The access control system operates at two levels:

1. Organization-level defaults - Global setting applied to all devices unless overridden
2. Device-level overrides - Per-device settings that take precedence over organization defaults

When consultants are assigned to devices in Arrow, the system automatically synchronizes these permissions to Netbird, creating appropriate groups and access policies.

Access Control Architecture

Setting Resolution Flow

The access control system resolves settings through a hierarchical inheritance model:

graph TD
    A[Organization] -->|has setting| B[user_access_control_default]
    C[Device Settings] -->|has setting| D[user_access_control]
    D -->|values| E{Setting Value}
    E -->|enabled| F[Access Control ON]
    E -->|disabled| G[Access Control OFF]
    E -->|inherit/empty| H[Use Org Default]

    F -->|creates| I[NetBird Group]
    I -->|members| J[Consultants Field]
    J -->|sync via hook| K[device_user_access.go]

    B -->|change triggers| L[org_access_control.go]
    L -->|syncs all devices| M[Inheriting Devices]

    D -->|change triggers| N[device_access_control.go]
    N -->|enables/disables| I

DeviceAccessControlManager

The DeviceAccessControlManager class (backend/api/netbird/device_groups.go) orchestrates all access control operations between Arrow and Netbird.

classDiagram
    class DeviceAccessControlManager {
        +IsAccessControlEnabled(deviceID) bool
        +GetOrgAccessControlDefault(orgID) bool
        +SyncDeviceUserAccess(deviceID, oldConsultants, newConsultants)
        +EnableAccessControlForDevice(deviceID)
        +DisableAccessControlForDevice(deviceID)
        +SyncAllOrgDevices(orgID)
    }

    class NetBirdClient {
        +GetUser(email) User
        +UpdateUser(userID, autoGroups)
        +CreateGroup(name) Group
        +GetGroup(id) Group
        +CreatePolicy(request) Policy
        +DeletePolicy(id)
    }

    class PocketBase {
        +device_requests
        +device_settings
        +system_integrations
    }

    DeviceAccessControlManager --> NetBirdClient : uses
    DeviceAccessControlManager --> PocketBase : reads/writes

Key Methods

Method	Description
IsAccessControlEnabled	Resolves effective access control state by checking device override, then falling back to organization default
GetOrgAccessControlDefault	Retrieves the organization-level default from system_integrations.user_access_control_default
SyncDeviceUserAccess	Synchronizes consultant assignments to Netbird groups when the consultants field changes
EnableAccessControlForDevice	Creates device group, consultant group, and one-way access policy
DisableAccessControlForDevice	Removes access restrictions, allowing all users to access the device
SyncAllOrgDevices	Updates all devices inheriting organization default when the default changes

Group Structure

Arrow creates two types of groups for each device with access control enabled:

Group Type	Naming Pattern	Contents
Device Group	device-{identifier}	Contains only the device peer
Consultant Group	consultants-{identifier}	Contains Netbird users (not peers) assigned to the device

One-Way Policy Model

Access control policies are configured as one-way (bidirectional=false):

• Consultants can connect TO devices - Allows SSH, VNC, and other management access
• Devices cannot connect back to consultants - Prevents lateral movement from compromised devices

This model ensures that even if a device is compromised, it cannot be used to attack consultant workstations.

Automatic Synchronization

Arrow uses PocketBase hooks to automatically enforce access control when data changes. Three hooks work together to maintain synchronization:

Device User Access Hook

File: backend/hooks/device_user_access.go

Trigger: Updates to the consultants field in device_requests collection

Behavior:

1. Detects changes to the consultants array
2. Checks if access control is enabled for the device
3. Calls SyncDeviceUserAccess to update Netbird user auto_groups
4. Only syncs if access control is enabled

sequenceDiagram
    participant User
    participant Arrow
    participant Hook
    participant Manager
    participant Netbird

    User->>Arrow: Update consultants on device_request
    Arrow->>Hook: Trigger device_user_access hook
    Hook->>Manager: Check IsAccessControlEnabled()
    Manager-->>Hook: true
    Hook->>Manager: SyncDeviceUserAccess(old, new)
    Manager->>Manager: EnsureDeviceGroup()
    Manager->>Manager: EnsureConsultantGroup()
    Manager->>Netbird: Get NetBird user by email
    Netbird-->>Manager: User object
    Manager->>Netbird: Update user auto_groups
    Netbird-->>Manager: Success
    Manager->>Manager: EnsureOneWayAccessPolicy()
    Manager->>Netbird: Create/Update policy
    Netbird-->>Manager: Policy created
    Manager-->>Hook: Sync complete
    Hook-->>Arrow: Success

Device Access Control Hook

File: backend/hooks/device_access_control.go

Trigger: Updates to the user_access_control field in device_settings collection

Behavior:

1. Detects changes to access control setting (enabled/disabled/inherit)
2. Resolves effective state based on device setting and organization default
3. Calls EnableAccessControlForDevice or DisableAccessControlForDevice as appropriate
4. Creates or removes groups and policies accordingly

Setting Values:

• enabled - Access control is explicitly enabled for this device
• disabled - Access control is explicitly disabled for this device
• inherit - Use organization default setting

Organization Access Control Hook

File: backend/hooks/org_access_control.go

Trigger: Updates to user_access_control_default field in system_integrations collection (type=“netbird”)

Behavior:

1. Detects changes to organization default setting
2. Calls SyncAllOrgDevices to update all devices
3. Skips devices with explicit overrides (enabled/disabled)
4. Only updates devices set to inherit

Group and Policy Management

EnsureDeviceGroup

Creates a device group if it doesn’t exist:

func (m *DeviceAccessControlManager) EnsureDeviceGroup(deviceIdentifier string) (*Group, error)

• Group name: device-{identifier}
• Contains: Only the device peer
• Created: When access control is first enabled for a device

EnsureConsultantGroup

Creates a consultant group for user assignments:

func (m *DeviceAccessControlManager) EnsureConsultantGroup(deviceIdentifier string) (*Group, error)

• Group name: consultants-{identifier}
• Contains: Netbird users assigned to the device
• Updated: When consultants are added/removed from the device

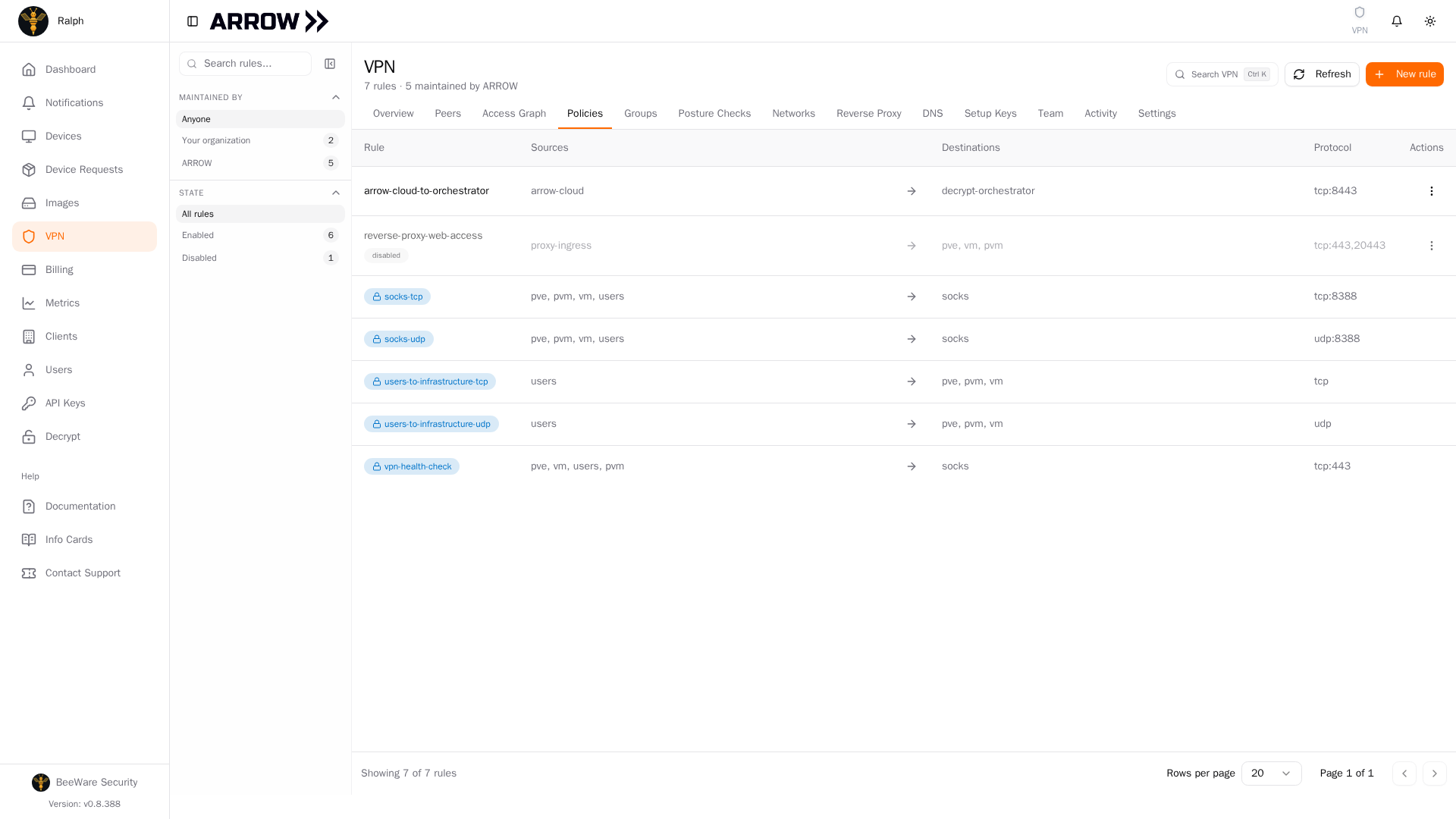

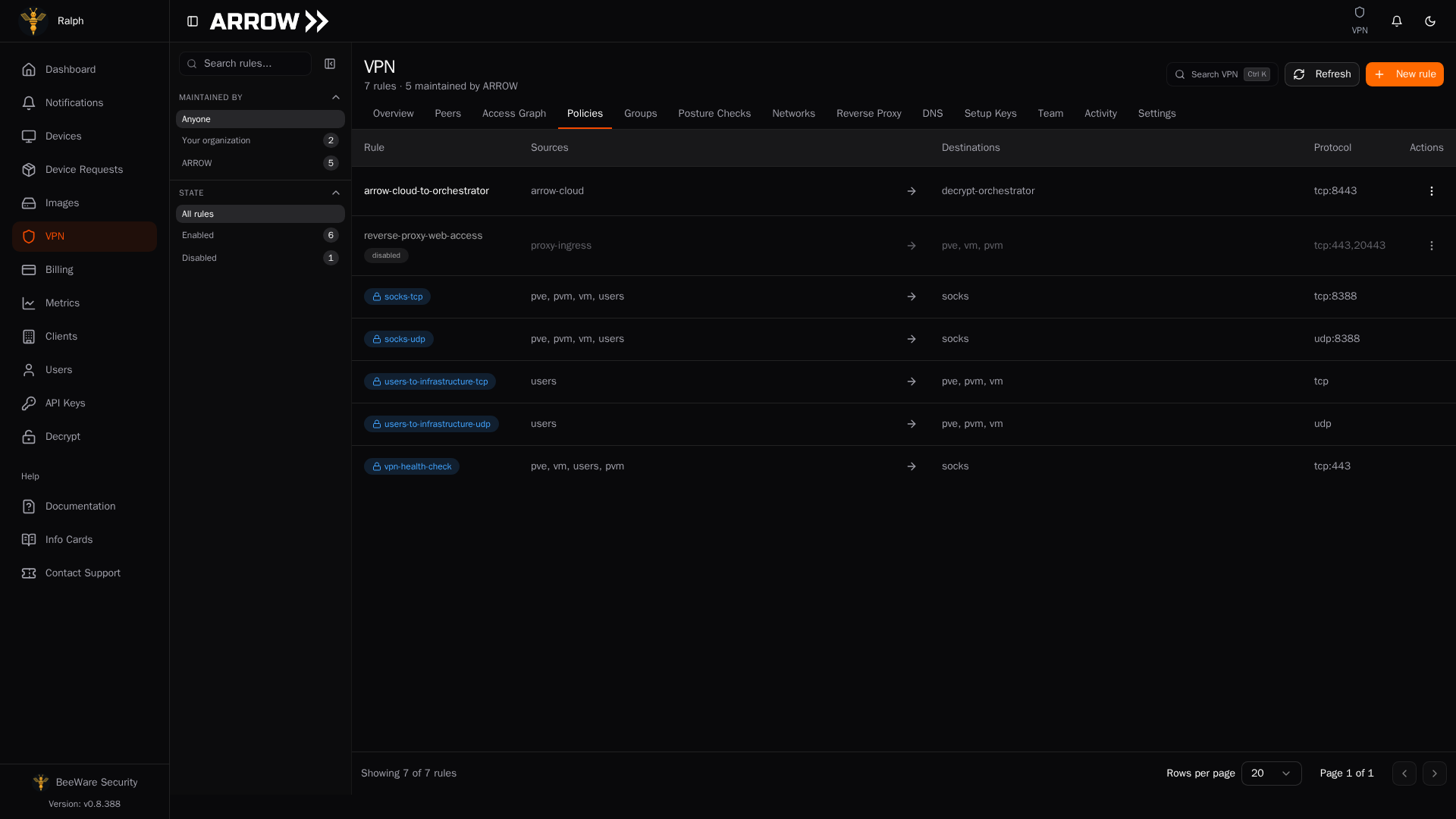

EnsureOneWayAccessPolicy

Creates or updates the access policy:

func (m *DeviceAccessControlManager) EnsureOneWayAccessPolicy(deviceIdentifier string) (*Policy, error)

Policy Configuration:

Property	Value
Name	access-{identifier}
Source	Consultant group
Destination	Device group
Bidirectional	false (one-way only)
Protocol	All
Ports	All

CleanupDeviceGroup

Removes groups and policies when a device is deleted:

func (m *DeviceAccessControlManager) CleanupDeviceGroup(deviceIdentifier string) error

• Deletes the device group
• Deletes the consultant group
• Removes the access policy
• Updates user auto_groups to remove references

Configuration

Organization-Level Setting

Stored in system_integrations collection where type = "netbird":

{
  "type": "netbird",
  "user_access_control_default": true
}

Value	Behavior
true	Access control enabled by default for all devices
false	Access control disabled by default

Device-Level Setting

Stored in device_settings collection:

{
  "device": "device_id",
  "user_access_control": "enabled",
  "netbird_group_id": "group-abc123",
  "netbird_consultant_group_id": "group-def456"
}

Setting	Behavior
enabled	Access control explicitly enabled
disabled	Access control explicitly disabled
inherit	Use organization default

Resolution Logic

When determining if access control is enabled for a device:

1. Check device_settings.user_access_control
2. If enabled or disabled, use that value
3. If inherit (or not set), check system_integrations.user_access_control_default
4. Default to false if no setting found

Stored Group IDs

The device_settings collection stores Netbird group IDs for reference:

Field	Description
netbird_group_id	ID of the device group in Netbird
netbird_consultant_group_id	ID of the consultant group in Netbird

These IDs are used for efficient lookups and cleanup operations.

Best Practices

Enable Access Control at Organization Level

For security, enable access control at the organization level:

1. Navigate to VPN settings in Arrow
2. Enable “User Access Control Default”
3. All devices will inherit this setting unless explicitly overridden

When to Use Device-Level Overrides

Use device-level overrides in specific scenarios:

Scenario	Recommended Setting
Shared lab devices	disabled - Allow all consultants
Testing/development devices	disabled - Allow team access
High-security devices	enabled - Restrict to specific consultants
Client-sensitive devices	enabled - Limit access to assigned team

Consultant Requirements

For access control to work correctly:

• Consultants must have Netbird user accounts
• Email addresses must match between Arrow and Netbird
• Users are matched by email during sync operations

Rate Limiting Considerations

When making bulk changes (e.g., enabling access control for many devices):

• Certificate generation has a 30-second delay between operations
• This prevents Let’s Encrypt rate limit errors
• Bulk operations may take several minutes to complete

Implementation Reference

Key Source Files

File	Purpose
backend/api/netbird/device_groups.go	DeviceAccessControlManager implementation
backend/api/netbird/client.go	NetBirdClient API wrapper
backend/hooks/device_user_access.go	Consultant sync hook
backend/hooks/device_access_control.go	Device-level toggle hook
backend/hooks/org_access_control.go	Organization-level toggle hook

Related Collections

Collection	Relevant Fields
device_requests	consultants - Array of assigned consultant IDs
device_settings	user_access_control, netbird_group_id, netbird_consultant_group_id
system_integrations	type, user_access_control_default, management_url, api_key

VM-Specific Access Control

Virtual machines provisioned through ARROW have specialized access control handling:

Automatic Group Creation

When VMs are provisioned with access control enabled:

1. Device Group: device-{vm-identifier} created containing only the VM peer
2. Consultant Group: consultants-{vm-identifier} created for assigned users
3. Access Policy: One-way policy allowing consultants to reach the VM

VM Access Policy Model

VM access policies follow the same one-way model as physical devices:

Property	Value
Source	Consultant group
Destination	VM device group
Bidirectional	false
Protocol	All

This prevents compromised VMs from being used to attack consultant workstations.

VM Completion Cleanup

When VMs are completed, access control resources are automatically cleaned up:

flowchart TD
    A[VM Completion Triggered] --> B[Get Device Settings]
    B --> C[Retrieve NetBird Client]
    C --> D[Delete VM Peer]
    D --> E[Delete Device Group]
    E --> F[Delete Consultant Group]
    F --> G[Remove Access Policy]
    G --> H[Clear Group IDs from Settings]
    H --> I[Cleanup Complete]

Cleanup Operations

The completion process removes:

• NetBird Peer: The VM’s VPN peer registration
• Device Group: The device-{id} group
• Consultant Group: The consultants-{id} group
• Access Policy: The access-{id} policy
• User References: Consultant auto_group assignments
