API Keys

Overview

API keys are long-lived credentials that grant programmatic access to the Arrow REST API, scoped to a single organization. They allow external tools and scripts to interact with Arrow without requiring a user session or browser login.

When to use API keys:

• Automation scripts (Bash, Python, PowerShell)
• CI/CD pipelines
• Ansible playbooks and configuration management
• Monitoring and inventory tools
• Custom integrations with internal systems

When to use the web UI instead:

• Day-to-day manual operations such as creating device requests, reviewing shipments, or managing users

Org Admins and Site Admins (for their own organization) can create and manage API keys. Site admins without an organization must use admin impersonation to manage keys for other organizations.

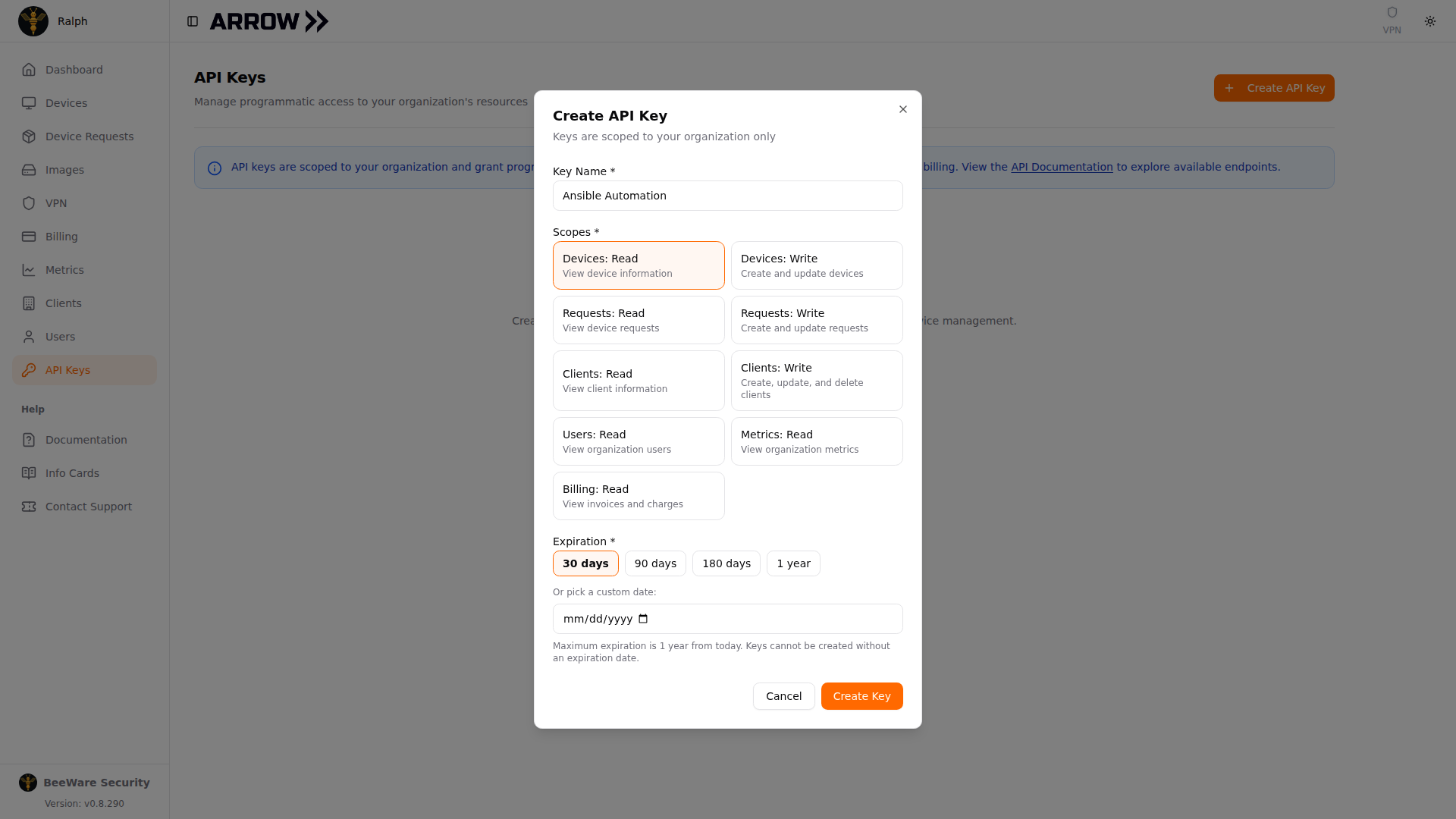

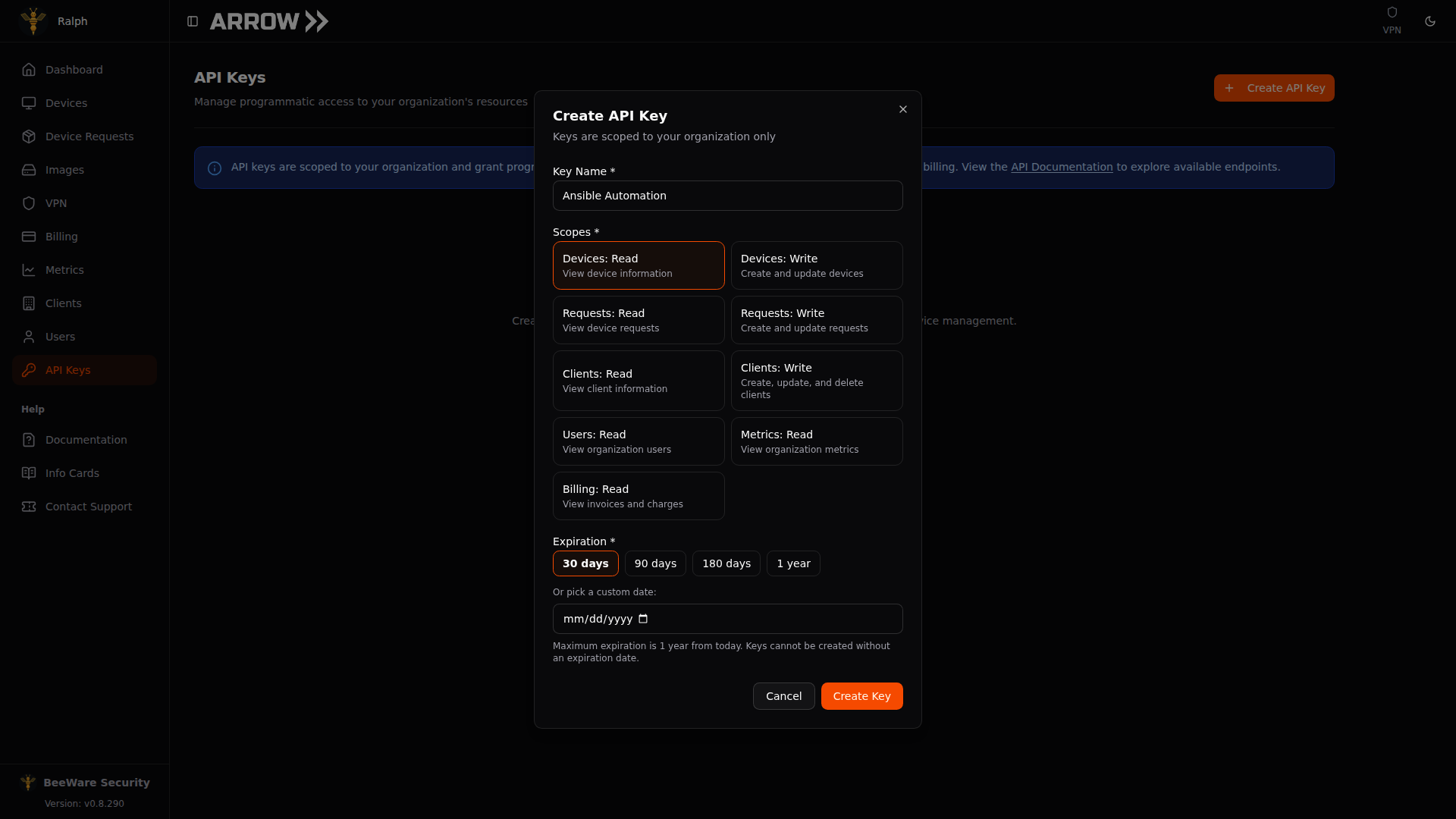

Creating an API Key

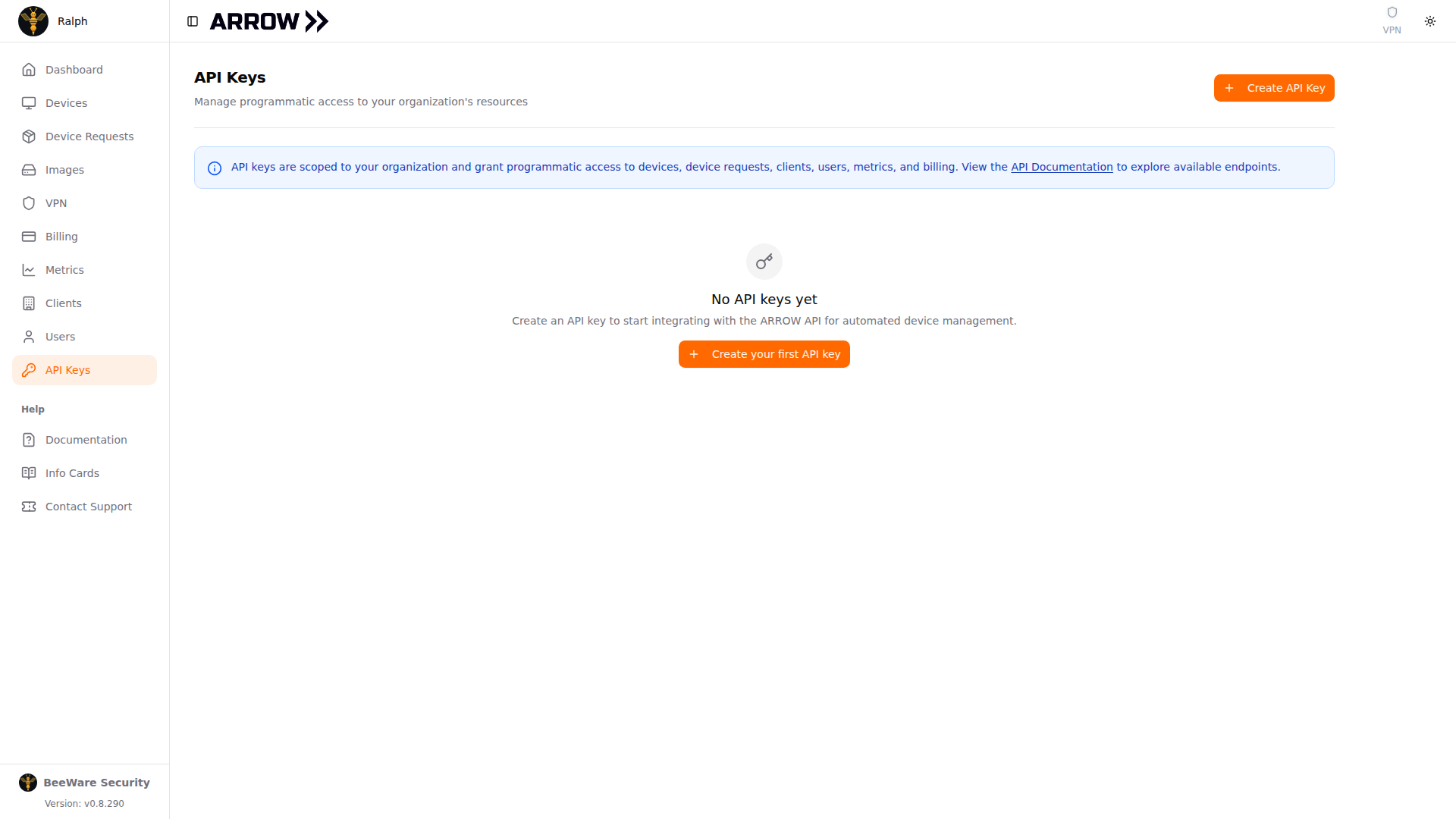

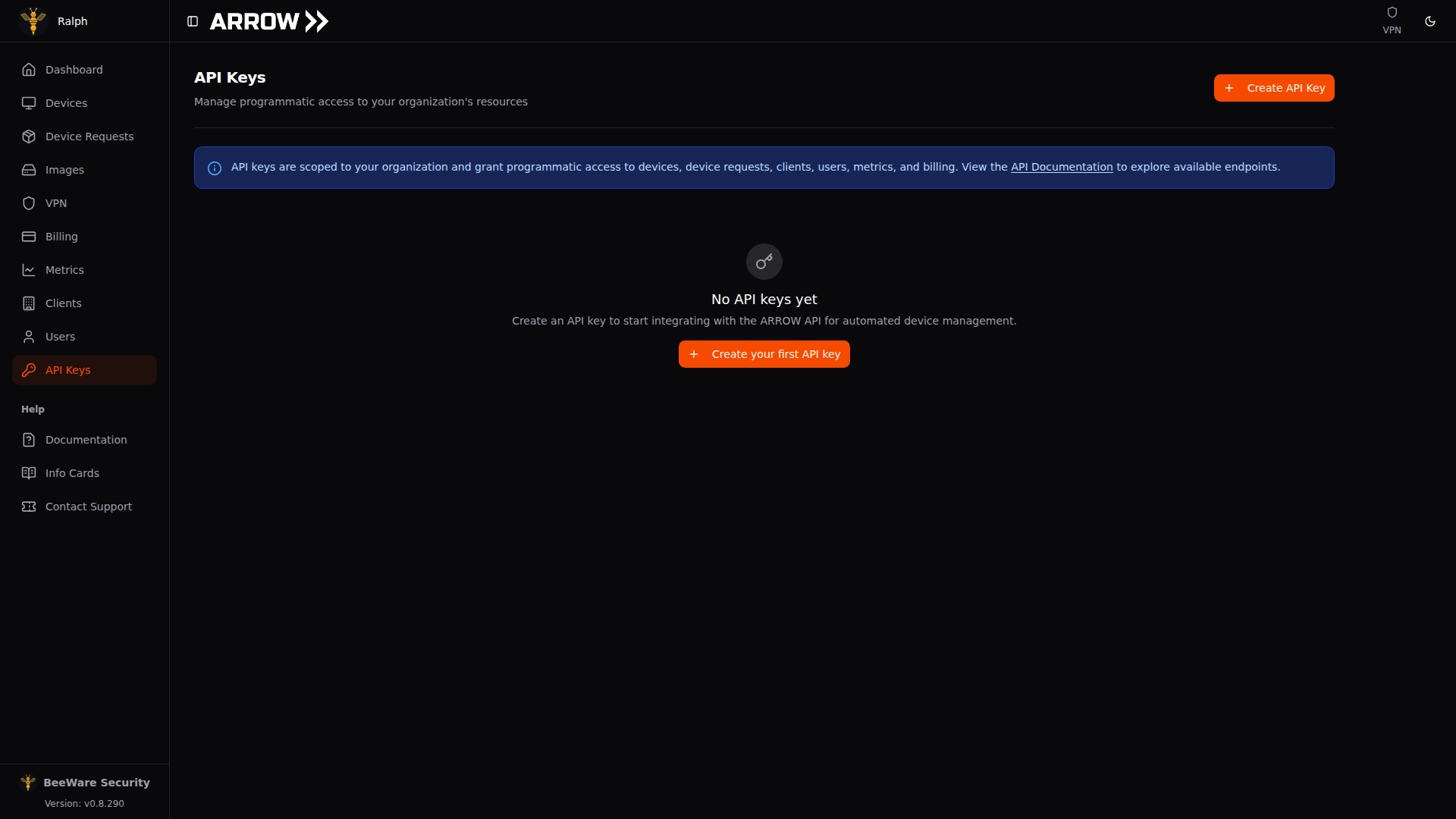

1. Sign in and click API Keys in the sidebar (requires the api_keys.manage permission or site admin status).
2. Click Create API Key.
3. Enter a descriptive Key Name (e.g., Ansible Automation).
4. Select one or more Scopes (see the table below).
5. Choose an Expiration — presets: 30 days, 90 days, 180 days, 1 year; or pick a custom date. Maximum is 1 year from today; expiration is required.
6. Click Create Key.
7. Copy the secret immediately — it is shown only once. Store it in a secrets manager or environment variable.

Important: The full API key secret is displayed only once at creation time. Arrow stores only a hash of the key and cannot retrieve the original value.

Available Scopes

Scope	Grants Access To
devices:read	List and view devices in your organization
devices:write	Update device settings and tags
device_requests:read	List and view device requests
device_requests:write	Create, update, and extend device requests; mark VM requests as returned
clients:read	List and view clients in your organization
clients:write	Create, update, and delete clients
users:read	List and view organization users
metrics:read	View organization metrics and statistics
billing:read	View invoices, charges, and billing information

Follow the principle of least privilege — only select the scopes your integration actually needs.

Authentication

Every API request must include the key in the X-API-Key HTTP header.

curl example:

curl -H "X-API-Key: arrow_YOUR_KEY_HERE" \
     https://arrow.vtemlabs.com/api/v1/devices

Python example:

import os
import requests

API_KEY = os.environ["ARROW_API_KEY"]
BASE_URL = "https://arrow.vtemlabs.com"

resp = requests.get(
    f"{BASE_URL}/api/v1/devices",
    headers={"X-API-Key": API_KEY},
)
resp.raise_for_status()
devices = resp.json()

API Reference

Interactive API Documentation Explore and test all available endpoints in the Swagger UI. No login required — just paste your API key into the Authorize button.

Quick Reference — Key Endpoints

Devices

Method	Endpoint	Scope Required	Description
GET	/api/v1/devices	devices:read	List all devices in your org (paginated)
GET	/api/v1/devices/{id}	devices:read	Get a single device
PATCH	/api/v1/devices/{id}	devices:write	Update device tags or notes

Device Requests

Method	Endpoint	Scope Required	Description
GET	/api/v1/device-requests	device_requests:read	List device requests (supports ?device_type= filter)
GET	/api/v1/device-requests/{id}	device_requests:read	Get a single device request
POST	/api/v1/device-requests	device_requests:write	Create a new device request
PATCH	/api/v1/device-requests/{id}	device_requests:write	Update details or extend dates
POST	/api/v1/device-requests/{id}/mark-vm-returned	device_requests:write	Mark a VM request as returned/decommissioned

Note: The mark-vm-returned endpoint applies only to VM device requests. Physical device returns are tracked automatically via EasyPost shipping webhooks when the carrier scans the return package — no API call is needed. VM deployments have no physical shipment, so this endpoint lets automation signal that the VM has been destroyed.

Clients

Method	Endpoint	Scope Required	Description
GET	/api/v1/clients	clients:read	List all clients in your organization
GET	/api/v1/clients/{id}	clients:read	Get a single client
POST	/api/v1/clients	clients:write	Create a new client
PATCH	/api/v1/clients/{id}	clients:write	Update client details
DELETE	/api/v1/clients/{id}	clients:write	Delete a client

Users

Method	Endpoint	Scope Required	Description
GET	/api/v1/users	users:read	List all users in your organization
GET	/api/v1/users/{id}	users:read	Get a single user

Metrics

Method	Endpoint	Scope Required	Description
GET	/api/v1/metrics	metrics:read	Get organization metrics and statistics

Billing

Method	Endpoint	Scope Required	Description
GET	/api/v1/billing/invoices	billing:read	List invoices for your organization
GET	/api/v1/billing/invoices/{id}	billing:read	Get a single invoice
GET	/api/v1/billing/charges	billing:read	Get current billing charges

Security Best Practices

• Store keys in environment variables — never hard-code them in source files or commit them to version control.
• Use minimal scopes — grant only the scopes your integration requires.
• Rotate before expiry — create a replacement key before the current one expires to avoid downtime. The UI shows a warning badge 14 days before expiry.
• Respect the 1-year maximum — keys cannot be created without an expiration date; the maximum lifetime is 365 days.
• Revoke unused keys immediately — if a key is no longer needed or may have been exposed, revoke it right away.

Revoking a Key

1. Click API Keys in the sidebar.
2. Find the key you want to revoke in the table.
3. Click the actions menu (three dots) and select Revoke.
4. Confirm the revocation in the dialog.

Note: Revocation is immediate. Any request using the revoked key will receive a 401 Unauthorized response.
